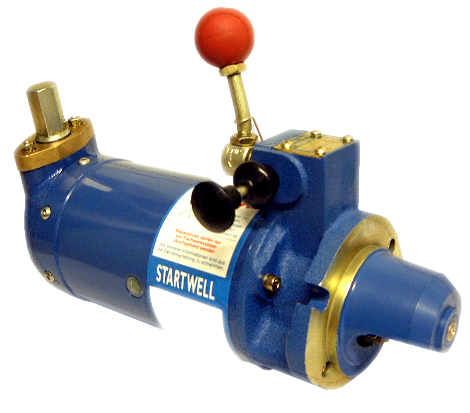

Midi Starter


REQUEST A QUOTE

Mechanical Spring Starters

Midi Starter

The second size up in the Spring Starter range, the Midi, is capable of starting engines up to 6.6 litres with a maximum of six cylinders.

The Midi Spring Starter can be installed on all manufacturers diesel engines.
Depth 4.5 Inches
Width: 11.2 Inches
Height: 4.7 Inches
Weight: 35.2 lbs
Specific Characteristics:
  • Rotation:- Clock model SDC
  • Anti clock model SDA
  • Mounting Flange:-SAE 1, SAE 2, SAE 3, SAE 4
  • Pinion face to flange face Dimension (mm) 20, 28. 47 and other variations
  • Engine Capacity 1.1 litre/cylinder; 6 cyl. Maximum
  • Pinion
    • 11 to 13 T 10/12 F/stub
    • 11 t0 13 T 8/10 F/stub
    • 9 to 13 teeth Mod. 3
    • 10 to 13 teeth Mod. 2.5
  • Max. Torque at pinion 115Nm (90 Ft lb.)
  • Max.Winding handle torque 64 Nm (50 ft lb)
  • Winding handle position variable 8.5 degree increment
  • Turns to fully wind 12
  • Weight (Kg ) 16
  • Cold starting Starting aid below 5 degree C

TECHNICAL SPECS

Mechanical_Spring_Starters.pdf

HOW TO

HOW_TO_INSTALL_SPRING_STARTERS.pdf

How_To_Operate_Spring_Starters.pdf

TYPICAL APPLICATION
  • Cummins 6CT 8.3 engine
  • Cummins NTA855-DM
  • Iveco
